King Tiger test at Kubinka

A captured King Tiger was tested at the Russian testing site at Kubinka.  One particular test was a ballistic resistance test where a Tiger II was fired at by a selection of Russian guns.  At some point during the testing the front of the Tiger was photographed.  Then the firing continued using German guns eventually reducing the hulk to a shredded heap.
I don't know too much about the tests but I did find some notes in Russian diagramming the hits by shell type.  I located some photographs of the front of the tank and tried to match and overlay the hit diagram to them.  Some of the hit locations seemed to be a little off so I adjusted them.   The front hull was hit by 27 projectiles at this point and the

turret front by 6 rounds.  Hit #13 was moved. '?' is unknown hit.   Other locations were moved very slightly to compensate for perspective.  At the point of the photograph the weld between the upper hull and lower has burst open after taking 8 heavy hits along it.  A piece of the lower hull is missing as three 100mm AP shots and a 122mm AP shot struck near each other in a cluster.
Impacts of 3-4 armor-piercing or high-explosive fragmentation shells from 152, 122, or 100 mm artillery pieces caused cracks, spalling and destruction of the weld seams in the tank's 100-190 mm thick frontal armor plates at ranges of 500-1000 meters. The impacts disrupted the operation of the transmission and took the tank out of service as an irrevocable loss.
Armor-piercing projectiles from the BS-3 (100 mm) and A-19 (122 mm) gun completely penetrated when impacting the edges or joints of the "Tiger-B" tank's front hull plates at ranges of 500-600 meters.
#22 85 mm armor-piercing projectiles from the D-5 and S-53 gun failed to penetrate the tank's front hull plates or cause any structural damage at distances of 300 meters.

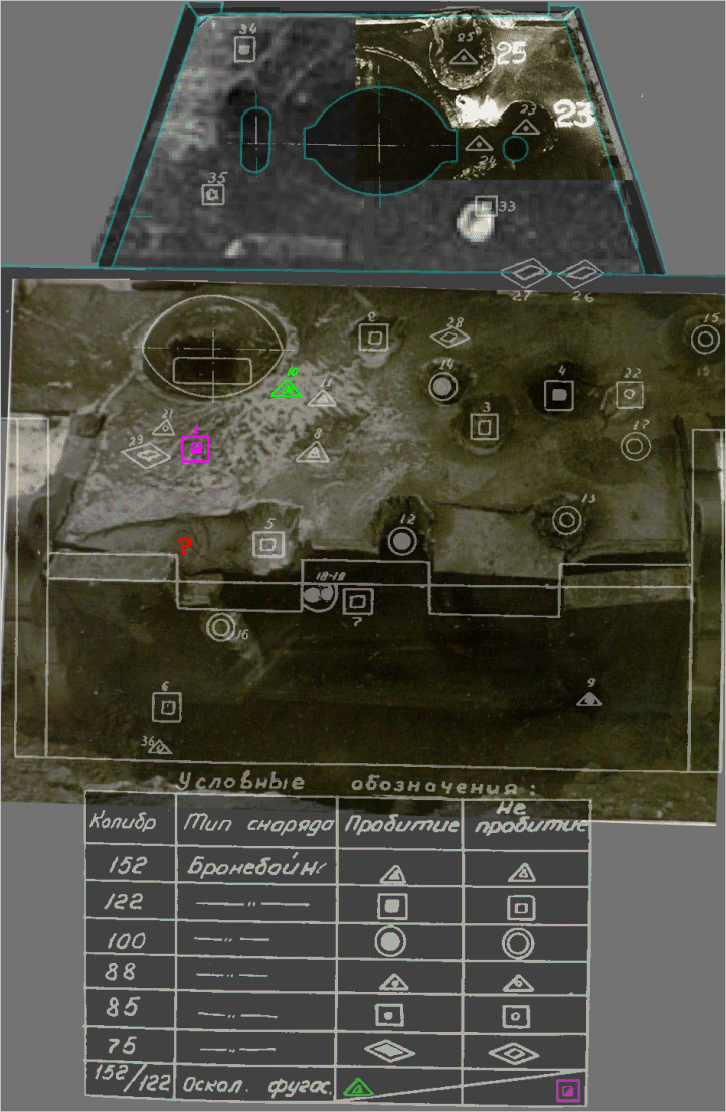

What looks like a key to the diagram is in the lower part of the graphic. The lowest line "152/122" may be High Explosive (HE) shells.  The third column of the key diagram represents penetrating AP hits.  The fourth column of the diagram key has the word 'He' in the label meaning 'not' - thus not penetrated.  The graphic of the shell locations was probably produced by some author for their book or web page at a much later date.

The accuracy of the turret diagram is questionable. I rearranged some of the markers here to reflect this text from the archived Russian Battlefield and other sites:

Armor-piercing projectiles from the BS-3 (100 mm) and A-19 (122 mm) gun completely penetrated the "Tiger-B" tank's front turret plate at ranges of 1000-1500 meters.  The front armor of the turret. Penetration #23 was made by a 100 mm armor-piercing projectile*.
(maybe not)  Penetration #25 was made by an 88mm armor-piercing projectile that went completely through the turret at a range of 400 meters.
However another report states that penetrations #21,#23,#24,#25,#36 were all 88mm/L71 APHE at 400m.   One 88mm APHE that penetrated the turret  produced an exit hole on the back plate of the turret.
#21 88mm/L71 on hull from 400m produced a dent 360mm by 130mm 90mm deep.  Knocked out 510mm by 160mm fragment on the inside.

1700m crack formed near side and hull MG mount. (Curiously the photo of the upper hull shows no damage at location #21 the 88mm/L71 APHE shell.)
[The kind of fuzzy photo of the turret seems to show AP of 122mm hit #33 stuck in the turret armor.]
One final thing.  It looks like
hit #4, the only Soviet shell that claims to penetrate the front hull, was not really a full penetration after all.  The pointed type shell stuck in the hull and later an 80mm thick piece fell out on the inside. How much 'help' was caused by extracting the shell is unknown.

It was found that the Soviets incorrectly figured their ballistics during the war.  A graph showing the differences is here.
